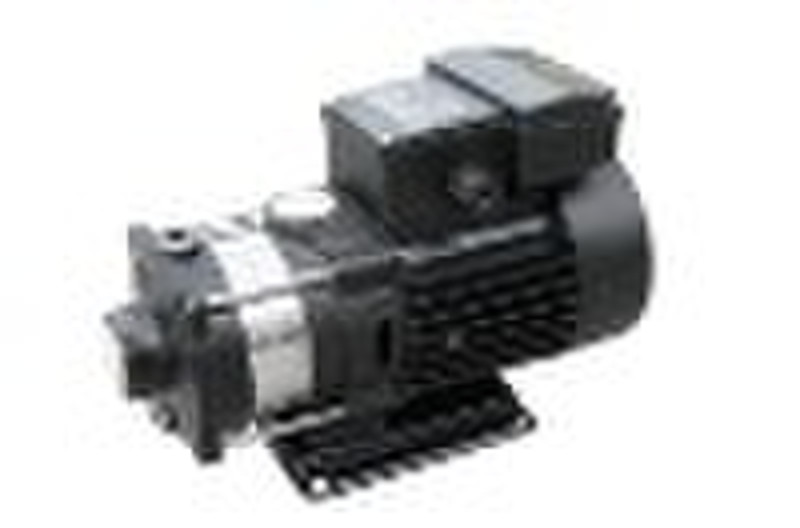

Centrifugal Pump

The LDPB range of Rocoi horizontal multistage centrifugal pumps are designed for the pumping of water and other thin, non-aggressive and non-explosive liquids, containing no solid particles or fibers . Operating Conditions Liquid Temperature 0 to +90. Ambient Temperature Up to +50. Maximum Operating Pressure 0 to +40: Up to 10 bar. +41 to +90: Up to 6 bar. Maximum Inlet Pressure The actual inlet pressure plus the pressure when the pump is operating against a closed valve should always be lower than the maximum operating pressure. Minimum Inlet Pressure The head loss in the suction pipe should therefore be taken into account. The maximum suction lift may be limited by the actual head.
